Examples (of eGuideDog Browser)

Example 1

Let's take http://labs.google.com/accessible/ for example.

Here is the screen-shot on Firefox web browser:

Here is the debug message of eGuideDog displayed on the terminal screen:

<title>Google Accessible Search
Google Accessible Search
Accessible search:
<input type=text>
<input type=submit>
<a href=advanced_search.html>Advanced Search
Accessible Web Search for the Visually Impaired
<a href=http://www.google.com/>Google Home
-
<a href=faq.html>Accessible Search FAQ
-
<a href=mailto:labs%2Baccessible@google.com>Feedback
-
<a href=http://labs.google.com/labsterms.html>Terms of Use
�2007 Google Inc.

Press the Down-arrow key for next item. From the beginning to the end, you will hear the follow sounds from eGuideDog browser:

the title of this page is Google Accessible Search
Google Accessible Search
Accessible search:
a text input with no value yet
a submit button
a link to Advanced Search
Accessible Web Search for the Visually Impaired
a link to Google Home
-
a link to Accessible Search FAQ
-
a link to Feedback
-
a link to Terms of Use
�2007 Google Inc.

You don't need to hear all speech above. Every new navigating key stroke will stop the unfinished speech and start a new one. If you press Right-arrow key or Enter key on the input item, you will enter a new window which asks you to input a line of text.
If you press Right-arrow key or Enter key on the submit button, you will submit the form request and navigate to the page responded.
If you press Right-arrow key or Enter key on a link item, you will enter the new page the link pointed to.

Example 2

In this example, we try http://www.goodtree.com.

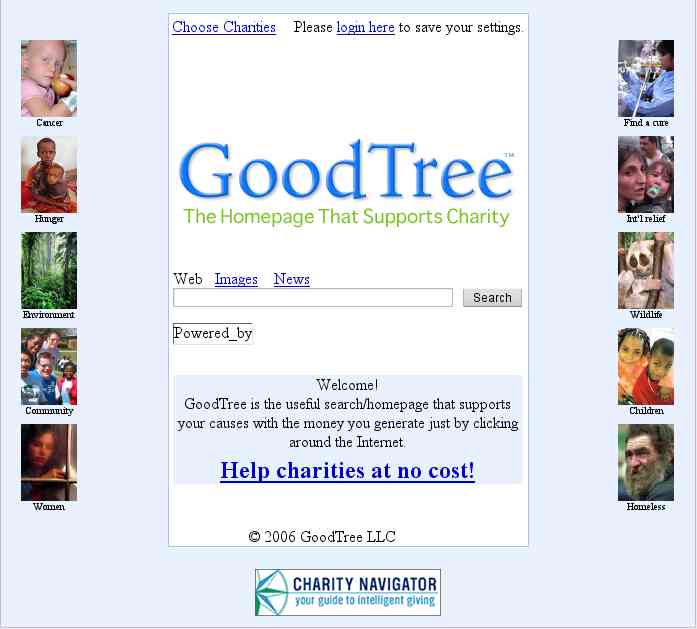

Here is the screen-shot on Opera web browser:



This is the debug message of eGuideDog displayed on the terminal:

<title>GoodTree - The homepage that supports charities
<a href=/charities>Cancer
Cancer
<a href=/charities>Hunger
Hunger
<a href=/charities>Environment
Environment
<a href=/charities>Community
Community
<a href=/charities>Women
Women
<div class="e-guidedog_part" e-guidedog_no=12 length=293 level=1 part_no=1 parts=3 quantity=1 summary="" tags="div" total=1>
<a href=/charities>Choose Charities
Please
<a href=/account/login>login here
to save your settings.
Logo_with_byline_large
<div class="e-guidedog_part" e-guidedog_no=18 level=2 mainpart="" part_no=2 parts=3 quantity=1 summary="" tags="form" total=1>
Web
<a href=/search?category=images>Images
<a href=/search?category=news>News
<input type=text>
<input type=submit>
Powered_by
<div class="e-guidedog_part" e-guidedog_no=25 length=167 level=3 part_no=3 parts=3 quantity=1 summary="" tags="div" total=1>
Welcome!
GoodTree is the useful search/homepage that supports your causes with the money you generate just by clicking around the Internet.
<a href=/charities>Help charities at no cost!
� 2006 GoodTree LLC
<a href=/charities>Cure
Find a cure
<a href=/charities>International
Int'l relief
<a href=/charities>Animals
Wildlife
<a href=/charities>Children
Children
<a href=/charities>Homeless
Homeless
<a href=http://www.charitynavigator.org>Charity Navigator

And this is what you will hear if you press Down-arrow key, Page-Down key, Page-Down key, Down-arrow key in turn.

Welcome to eGuideDog
the title of this page is GoodTree - The homepage that supports charities
a link to Cancer
Part 1 of 3, level 1 with 1 div.
Part 2 of 3, level 2 with 1 form. This is the main part.
Web

In This part, eGuideDog will divide the home page of GoodTree into three parts - links on the left, search form in the middle and links on the right. eGuideDog will also mark the search form as the main part. So only several key strokes is needed to find the main part of a page. Isn't that nice:)
